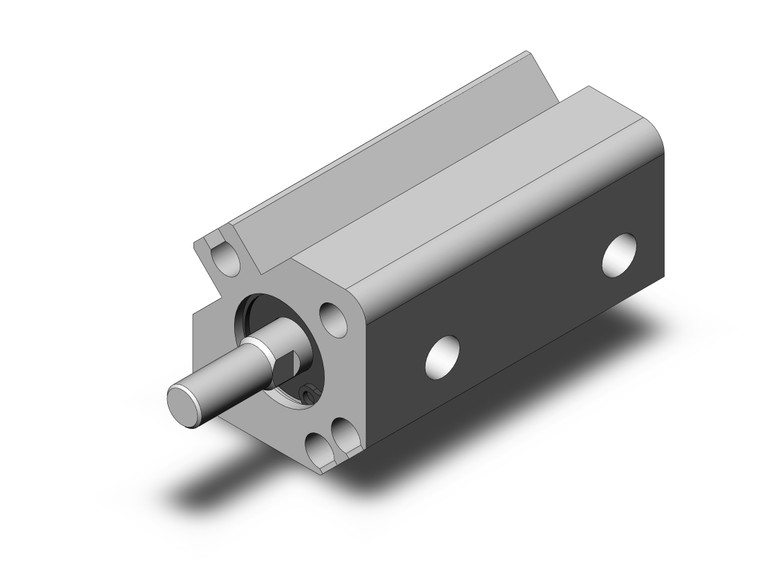

SMC CDQ2A12-15DCMZ CQ2 Z Series Compact Cylinder

The SMC CDQ2A12-15DCMZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2 Z Series, renowned for its compact design and enhanced functionality. The cylinder is available in a comprehensive size range from 4 to 200, with new additions in sizes 4, 6, and 10, catering to diverse application needs. Designed with a focus on space optimization, the CQ2 Z Series allows for the mounting of small auto switches on up to four surfaces, with two surfaces available for sizes 12 to 25. This feature ensures seamless integration into complex systems without the projection of auto switches, maintaining a streamlined profile. The cylinder's lightweight construction, reduced by 5 to 13% compared to the previous CQ2 series, enhances operational efficiency and ease of installation. Engineers will appreciate the added pivot brackets for double clevis and compact type foot brackets, which simplify mounting and increase versatility. For added convenience, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need for separate bracket orders. The inclusion of an auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2) further enhances the cylinder's adaptability and control in automated systems. Ideal for engineers and manufacturing professionals seeking reliable and efficient pneumatic solutions, the SMC CDQ2A12-15DCMZ offers a robust, space-saving design with the flexibility to meet the demands of modern industrial applications.
