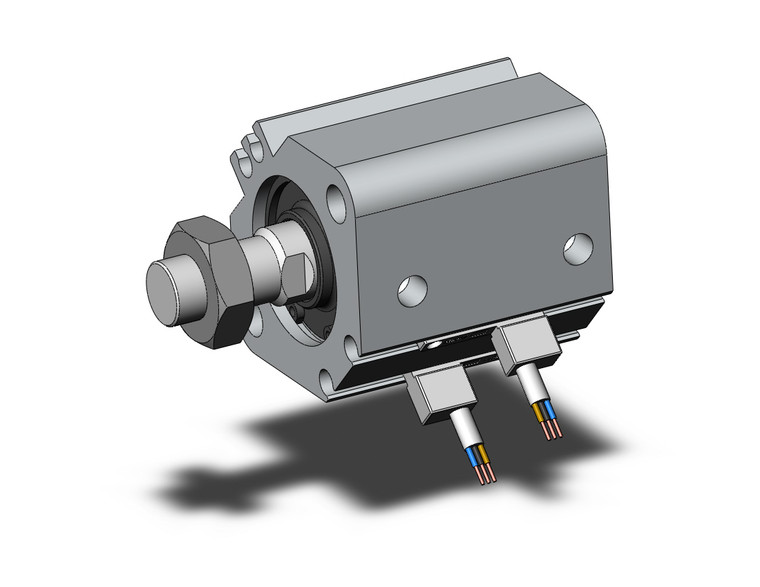

SMC CDQ2A25-10DMZ-M9PV CQ2 Z Series Compact Cylinder
SMC
$128.85
This compact CQ2 Z cylinder, with a 25 mm bore, 10 mm stroke, and M9PV solid-state switch, gives engineers double acting, single rod control, non-lube internals, proof pressure 1.0 MPa, 0.7 MPa max operation, 50500 mm/s speed, 10 to 70°C, rubber bumper and bracket/tapped/through-hole mounts for robust automation builds.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 25 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 10 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
