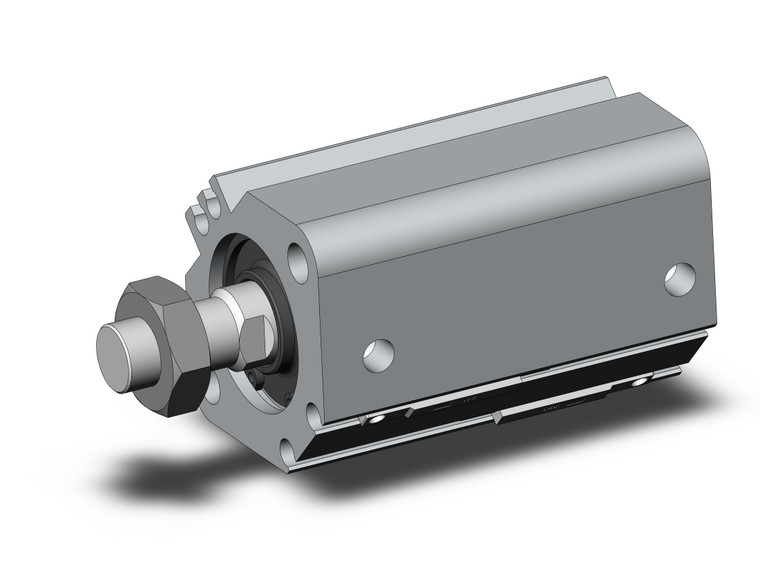

SMC CDQ2A25-30DCMZ-A93Z Compact Cylinder, Cq2-Z

SMC CDQ2A25-30DCMZ-A93Z CQ2 Z Series Compact Cylinder

SMC
SKU:
CDQ2A25-30DCMZ-A93Z
Availability:
Factory Stock
$123.70
Condition:
New
Current Stock:
Description
Advanced vibration control: double acting, single rod, 25 mm bore, 30 mm stroke, A93Z switch, non-lube, mounting bracket/tapped/through-hole, proof 1.0 MPa, 0.7 MPa max, 50–500 mm/s, –10 to 70°C, resilient rubber bumper.
Additional Information
Built-in Magnet:
Built-in Magnet
Mounting Style:
Both Ends Tapped Style
Type:
Pneumatic
Bore Size:
Bore Size 25 mm
Port Thread Type:
Rc/M Thread
Cylinder Stroke:
Standard Stroke 30 mm
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Body Option:
With Rubber Bumper And Rod End Male Thread
Auto Switch Mounting Groove:
12- 25 2 Sides/ 32- 100 4 Sides
Mounting Bolt:
None
Rod End Bracket:
None
Auto Switch:
Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :5m, Apply Voltage :DC24V,AC100V
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
