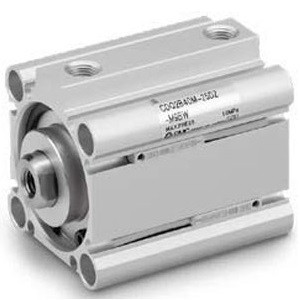

SMC CDQ2A40M-50DMZ-M9NWV CQ2 Series Compact Cylinder With Stable Lubrication Function (Lub-retainer) Standard

SMC CDQ2A40M-50DMZ-M9NWV CQ2 Series Compact Cylinder With Stable Lubrication Function (Lub-retainer) Standard

SMC
SKU:
CDQ2A40M-50DMZ-M9NWV
Availability:
Contact us to confirm availability and lead times.
$168.20
Condition:
New
Current Stock:
Description

CQ2 Series Compact Cylinder With Stable Lubrication Function (Lub-retainer) Standard

  • Applicable to operation in micro-powder (10 to 100 μm) /general environments;
  • Durability is 4 times stronger than the standard model in micro-powder;　environments;
  • The overall length and mounting are the same as those of the standard model;　(Except for some models);
  • Grease film is formed on the piston rod surface to improve the durability;
  • Entry of dust and foreign matter is prevented;
  • The number of operating cycles can be improved even in general environments
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Both Ends Tapped Style
    Bore Size:
    Bore Size 40 mm
    Cylinder Stroke:
    Standard Stroke 50 mm
    Action:
    Double Acting
    Body Option:
    Rod End Male Thread
    Auto Switch Mounting Groove:
    Φ32-Φ100 4 Sides
    Mounting Bolt:
    None
    Rod End Bracket:
    None
    Auto Switch:
    2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
