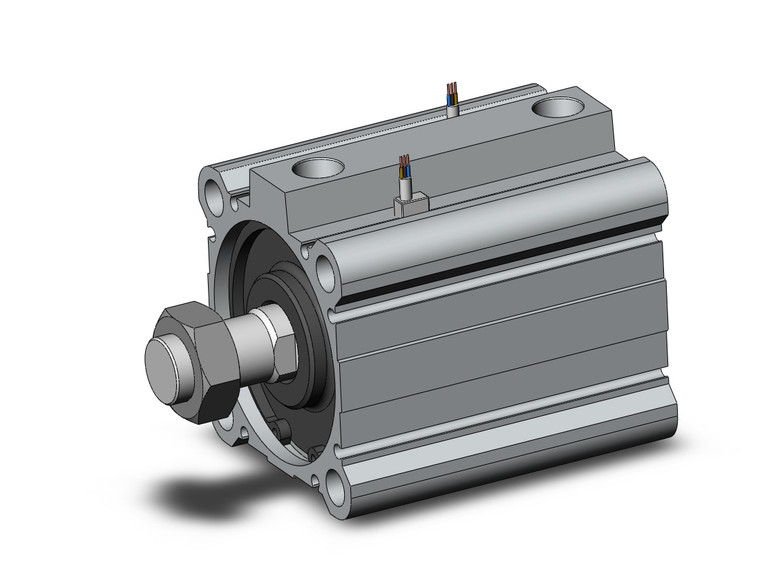

SMC CDQ2A63-50DCMZ-M9PWVSDPC CQ2 Z Series Compact Cylinder
SMC
$227.65
The SMC CDQ2A63-50DCMZ-M9PWVSDPC CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. With sizes ranging from 4 to 200, including the newly added 4, 6, and 10, this cylinder offers a comprehensive lineup to suit various requirements.
One of the standout features of this cylinder is its ability to mount small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring flexibility and ease of use. The design eliminates the projection of the auto switch, contributing to a streamlined appearance and functionality.
In addition to its compact design, the CQ2 Z Series Compact Cylinder is lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series. This weight reduction enhances the cylinder's efficiency and ease of handling.
For added convenience, the cylinder includes pivot brackets for double clevis and compact type foot brackets. Part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order a bracket separately for the applicable cylinder.
The cylinder is compatible with auto switch series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing a comprehensive solution for your automation needs.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper And Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
