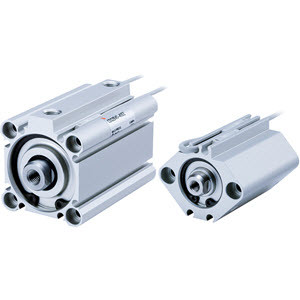

SMC CDQ2A80-100DMZ-M9BAV CQ2 Z Series Compact Cylinder
SMC
$230.70
The SMC CDQ2A80-100DMZ-M9BAV CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This compact cylinder is designed to save space with its streamlined body, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
This cylinder allows for the mounting of small auto switches on four surfaces, with no projection of the auto switch, ensuring a sleek and unobtrusive design. For sizes 12 to 25, switches can be mounted on two surfaces. The cylinder is also lighter, with a weight reduction of 5 to 13% compared to the existing CQ2 series, enhancing its ease of use and installation.
Additional features include pivot brackets for double clevis and compact type foot brackets, as well as part numbers with rod end bracket and/or mounting bolt available, eliminating the need to order a bracket separately. The cylinder is compatible with auto switch series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing flexibility and adaptability for various applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 80 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 100 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Water Resistant 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, Perpendicular, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
