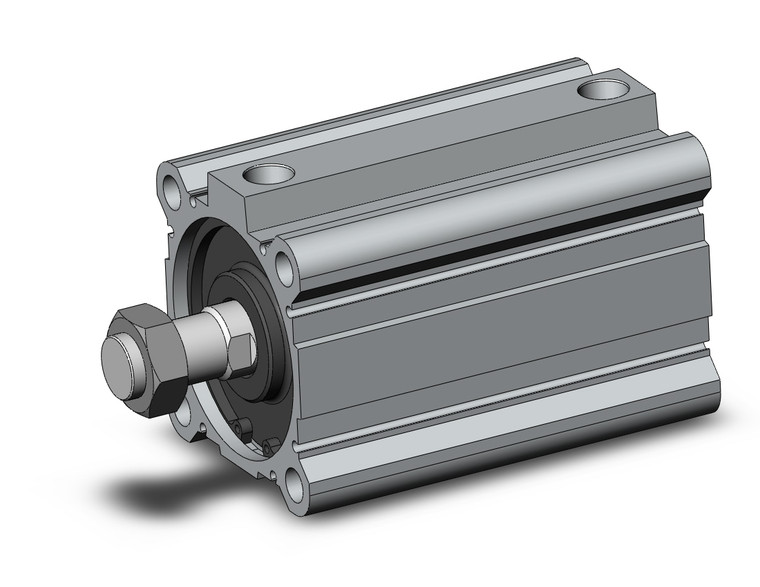

SMC CDQ2A80-100DMZ-M9NWL CQ2 Z Series Compact Cylinder
SMC
$221.80
The SMC CDQ2A80-100DMZ-M9NWL CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This innovative cylinder features a space-saving design with a compact body, making it ideal for applications where space is limited. The CQ2 Z Series has expanded its lineup to include sizes 4, 6, and 10, offering a range from 4 to 200 to suit various requirements.
This cylinder is engineered for convenience and performance, allowing small auto switches to be mounted on four surfaces, with two surfaces available for sizes 12 to 25. The design ensures no projection of the auto switch, maintaining a sleek profile. Additionally, the cylinder is lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, enhancing its ease of use and installation.
For added flexibility, the CQ2 Z Series includes pivot brackets for double clevis and compact type foot brackets. Part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order a bracket separately for the applicable cylinder. The series also supports auto switch integration, compatible with models such as CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, ensuring seamless operation in your system.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 80 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 100 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
