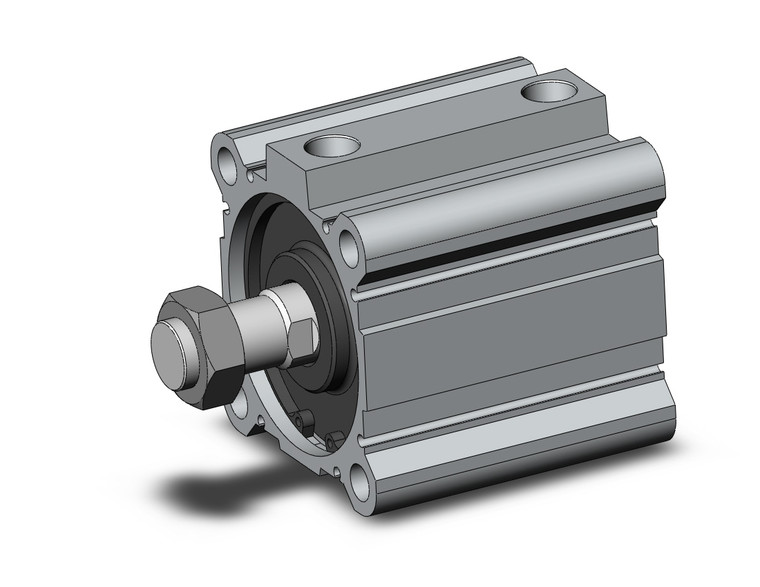

SMC CDQ2A80-50DMZ-M9PMAPC CQ2 Z Series Compact Cylinder
SMC
$223.00
The SMC CDQ2A80-50DMZ-M9PMAPC CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2 Z Series has expanded its lineup to include sizes 4, 6, and 10, in addition to the existing range from 4 to 200.
One of the standout features of this cylinder is the ability to mount small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. This design not only saves space but also reduces weight by 5 to 13% compared to the existing CQ2 series, enhancing efficiency and ease of use.
The cylinder also comes with added pivot brackets for double clevis and compact type foot brackets, providing flexibility in mounting options. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder.
With the inclusion of an auto switch, the SMC CDQ2A80-50DMZ-M9PMAPC is part of the Series CDQ2, which includes models CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering a comprehensive solution for various industrial applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 80 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
