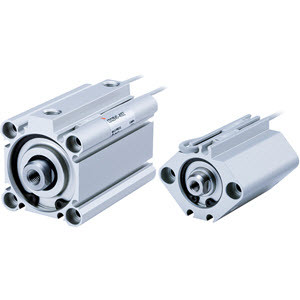

SMC CDQ2B100-15DZ-M9NV CQ2 Z Series Compact Cylinder
SMC
$232.45
The SMC CDQ2B100-15DZ-M9NV CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
This cylinder is designed for convenience and efficiency, allowing small auto switches to be mounted on four surfaces, with two surfaces available for sizes 12 to 25. The auto switch is seamlessly integrated with no projection, ensuring a sleek and unobtrusive profile.
The CQ2 Z Series is also lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. For added flexibility, pivot brackets for double clevis and compact type foot brackets have been included. Additionally, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order brackets separately for the applicable cylinder.
With the option to include an auto switch, the SMC CDQ2B100-15DZ-M9NV offers enhanced functionality and adaptability, making it a reliable choice for a wide range of industrial applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 15 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
