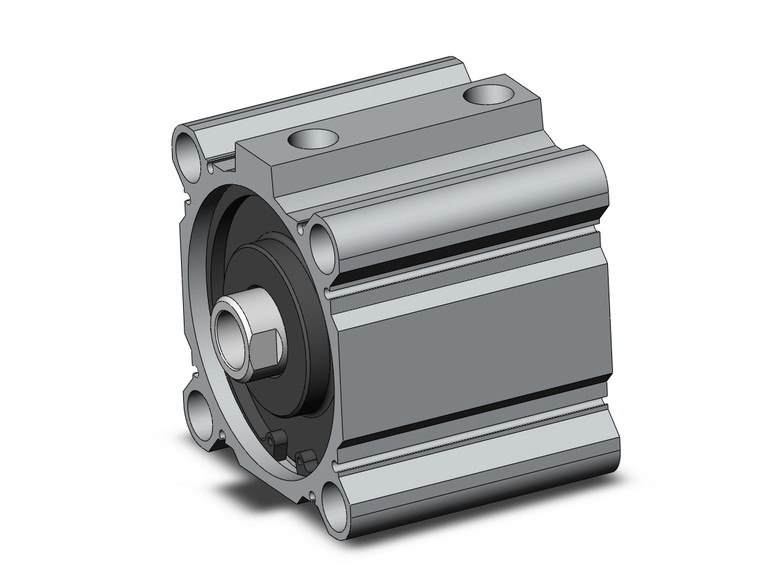

SMC CDQ2B100-40DZ-M9BWMDPC Compact Cylinder, Cq2-Z

SMC CDQ2B100-40DZ-M9BWMDPC CQ2 Z Series Compact Cylinder

SMC
SKU:
CDQ2B100-40DZ-M9BWMDPC
Availability:
Contact us to confirm availability and lead times.
$271.65
Condition:
New
Current Stock:
Description
The SMC CDQ2B100-40DZ-M9BWMDPC CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. With sizes ranging from 4 to 200, the CQ2 Z Series offers a comprehensive lineup to suit various requirements. Newly added sizes 4, 6, and 10 enhance its versatility, while the ability to mount small auto switches on four surfaces (two surfaces for sizes 12 to 25) ensures seamless integration into your system. The design eliminates the projection of the auto switch, contributing to a streamlined appearance and functionality. The CQ2 Z Series is also lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. For added convenience, pivot brackets for double clevis and compact type foot brackets have been included, and part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately. With the option to include an auto switch, the SMC CDQ2B100-40DZ-M9BWMDPC is compatible with Series CDQ2 models such as CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, ensuring a perfect fit for your specific application.
Additional Information
Built-in Magnet:
Built-in Magnet
Mounting Style:
Through-hole (Standerd)
Type:
Pneumatic
Bore Size:
Bore Size 100 mm
Port Thread Type:
Rc/M Thread
Cylinder Stroke:
Standard Stroke 40 mm
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Body Option:
Standard (Rod End Female Thread)
Auto Switch Mounting Groove:
12- 25 2 Sides/ 32- 100 4 Sides
Mounting Bolt:
None
Rod End Bracket:
None
Auto Switch:
2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :1m, Apply Voltage :DC24V(DC10~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
