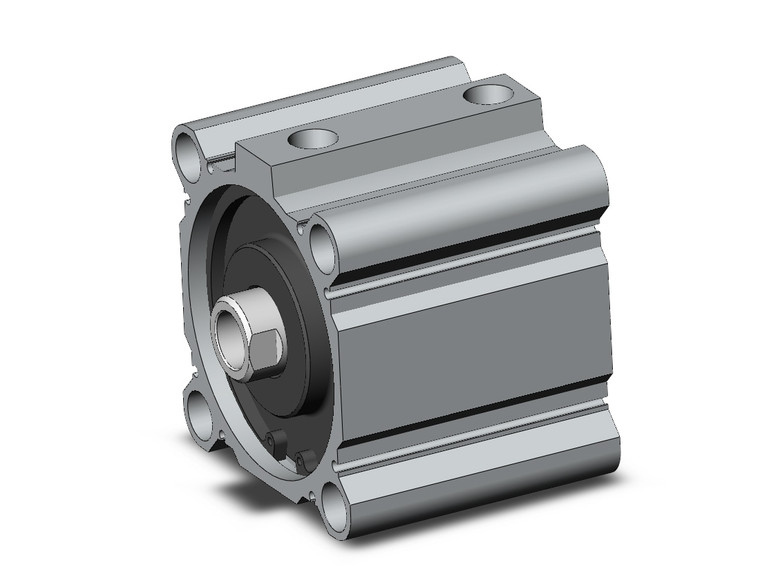

SMC CDQ2B100-40DZ-M9PWMBPC CQ2 Z Series Compact Cylinder
SMC
$264.25
The SMC CDQ2B100-40DZ-M9PWMBPC CQ2 Z Series Compact Cylinder is a versatile and space-efficient solution for your pneumatic needs. This innovative cylinder features newly added sizes of 4, 6, and 10, expanding the lineup from 4 to 200. Its compact design allows for easy integration into tight spaces, while the ability to mount small auto switches on four surfaces (two surfaces for sizes 12 to 25) enhances its functionality without any protrusion. The cylinder is lighter, with a weight reduction of 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. Additionally, it includes pivot brackets for double clevis and compact type foot brackets, and part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order brackets separately. The cylinder is compatible with auto switches from the CDQ2 series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, ensuring seamless integration into your system.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 40 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
