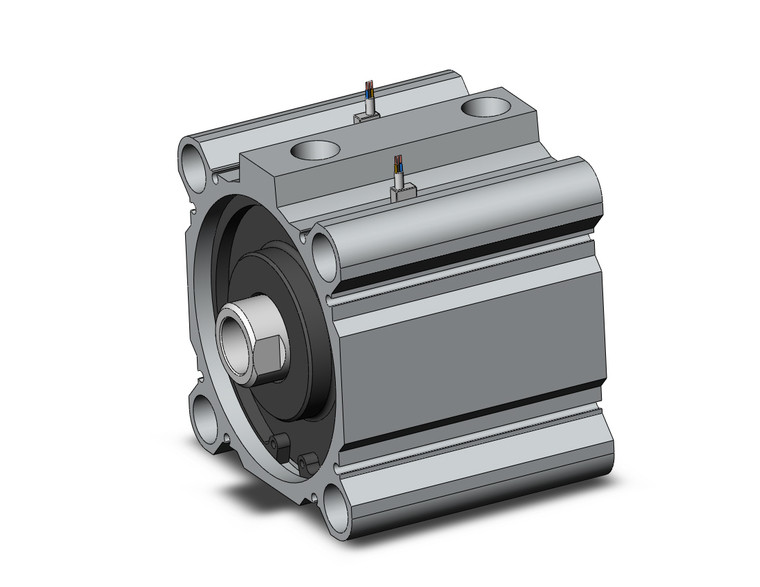

SMC CDQ2B100-40DZ-M9PWVMAPC Compact Cylinder, Cq2-Z

SMC CDQ2B100-40DZ-M9PWVMAPC CQ2 Z Series Compact Cylinder

SMC
SKU:
CDQ2B100-40DZ-M9PWVMAPC
Availability:
Factory Stock
$269.45
Condition:
New
Current Stock:
Description
The SMC CDQ2B100-40DZ-M9PWVMAPC CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is limited. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200. This cylinder is designed for convenience and efficiency, allowing small auto switches to be mounted on four surfaces, with two surfaces available for sizes 12 to 25. The auto switch is integrated without any projection, ensuring a sleek and streamlined appearance. In addition to its compact design, the CQ2 Z Series is lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series. This makes it easier to handle and install. The series also includes added pivot brackets for double clevis and compact type foot brackets, providing more mounting options. For added convenience, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order a bracket separately for the applicable cylinder. The series is compatible with auto switches, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering flexibility and adaptability for various applications.
Additional Information
Built-in Magnet:
Built-in Magnet
Mounting Style:
Through-hole (Standerd)
Type:
Pneumatic
Bore Size:
Bore Size 100 mm
Port Thread Type:
Rc/M Thread
Cylinder Stroke:
Standard Stroke 40 mm
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Body Option:
Standard (Rod End Female Thread)
Auto Switch Mounting Groove:
12- 25 2 Sides/ 32- 100 4 Sides
Mounting Bolt:
None
Rod End Bracket:
None
Auto Switch:
2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
