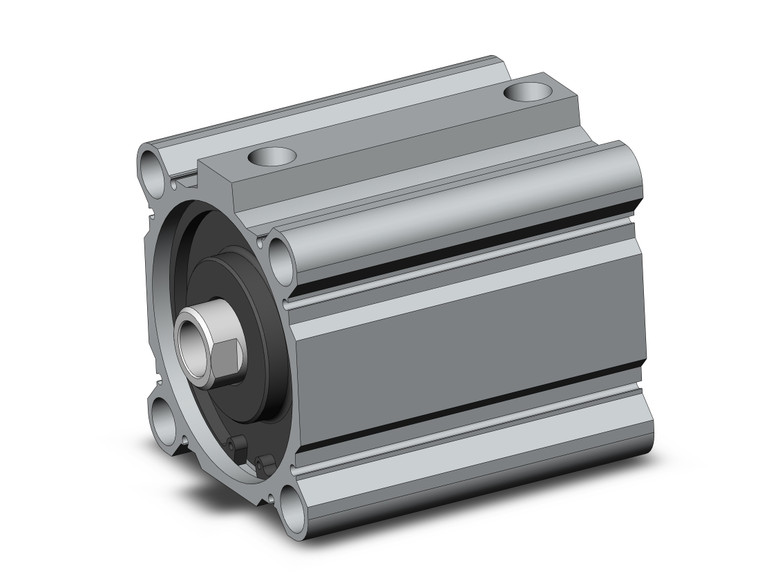

SMC CDQ2B100-75DZ-M9NAL CQ2 Z Series Compact Cylinder
SMC
$265.85
The SMC CDQ2B100-75DZ-M9NAL CQ2 Z Series Compact Cylinder is a versatile and space-efficient solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
Engineered for convenience, this cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. The lightweight design offers a weight reduction of 5 to 13% compared to the existing CQ2 series, enhancing ease of use and installation.
For added flexibility, the cylinder includes pivot brackets for double clevis and compact type foot brackets. Part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order a bracket separately for the applicable cylinder. Additionally, the cylinder is compatible with auto switch series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing a comprehensive solution for your automation requirements.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 75 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Water Resistant 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
