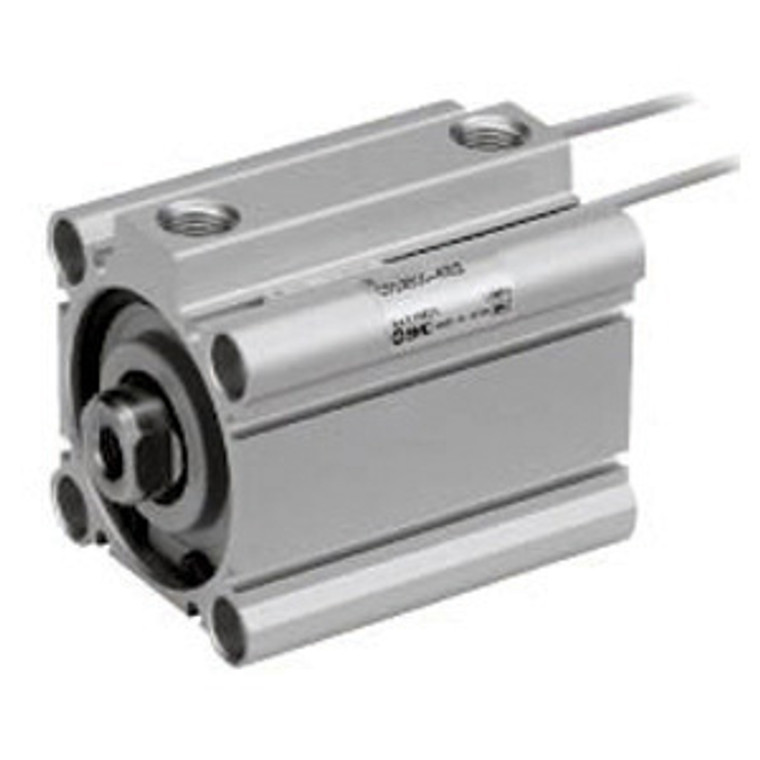

SMC CDQ2B20-15+15DZ-A73L-XC11 CQ2 Z Series Compact Cylinder

(No reviews yet) Write a Review
SKU:
CDQ2B20-15+15DZ-A73L-XC11
MPN:
CDQ2B20-15+15DZ-A73L-XC11
Condition:
New
Built-in Magnet:
Built-in Magnet
Mounting Style:
Through-hole (Standerd)
Type:
Pneumatic
Bore Size:
Bore Size 20 mm
Port Thread Type:
Rc/M Thread
Cylinder Stroke:
Standard Stroke 15 mm
Dual Stroke Mark:
Dual Stroke Mark
Cylinder Stroke 2:
Standard Stroke 15 mm
Body Option:
Standard (Rod End Female Thread)
Auto Switch Mounting Groove:
Φ12-Φ25 2 Sides/Φ32-Φ100 4 Sides
Mounting Bolt:
None
Rod End Bracket:
None
Auto Switch:
Reed Auto Switch, Grommet, With Indicator Light, 2-wire, Perpendicular, Lead Wire :3m, Apply Voltage :DC24V,AC100V
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Dual Stroke Cylinder/Single Rod Type
$166.50

Description

CQ2 Z Series Compact Cylinder

  • Sizes Φ4, Φ6, and Φ10 have been added [New];
  • Φ4 to Φ200 lineup;
  • Space-saving cylinder designed with a compact body;
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces;　for Φ12 to Φ25);
  • No projection of auto switch;
  • Lighter weight: Reduced by 5 to 13% (compared with the existing;　CQ2 series);
  • Added pivot brackets for double clevis and compact type foot brackets;
  • Part numbers with rod end bracket and/or mounting bolt available;　(Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,;　CDQP2, CDQ2 S, CDBQ2)
    • View AllClose
