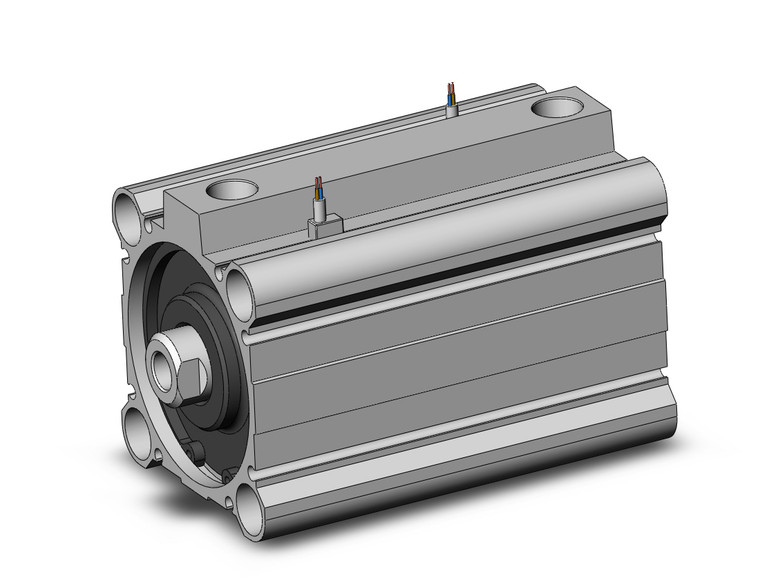

SMC CDQ2B63-75DCZ-M9BWVMDPC CQ2 Z Series Compact Cylinder
SMC
$231.15
The SMC CDQ2B63-75DCZ-M9BWVMDPC CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
Designed for efficiency, this cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. The lightweight construction reduces weight by 5 to 13% compared to the existing CQ2 series, enhancing ease of use and installation.
For added convenience, the cylinder comes with pivot brackets for double clevis and compact type foot brackets. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. Additionally, the cylinder is compatible with auto switch series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering flexibility and adaptability for various applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 75 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, Perpendicular, Lead Wire :1m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
