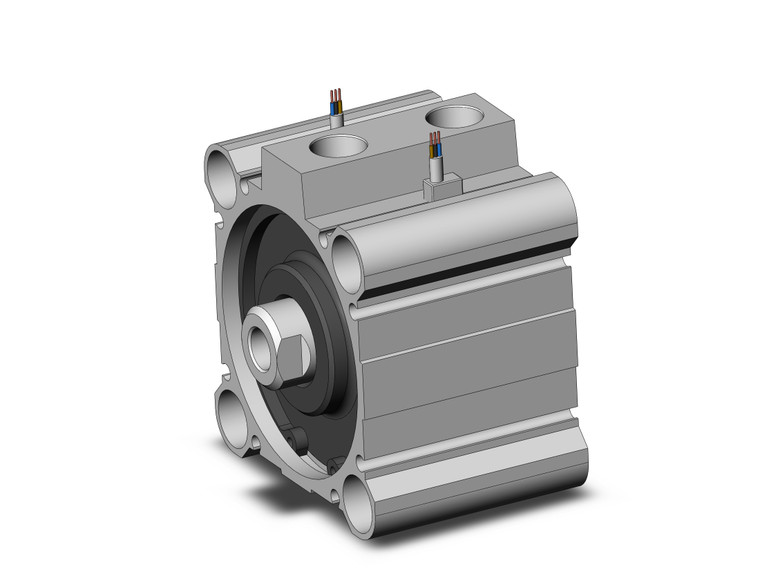

SMC CDQ2B63TN-5DZ-M9PVSAPC CQ2 Z Series Compact Cylinder
SMC
$233.00
Introducing the SMC CDQ2B63TN-5DZ-M9PVSAPC CQ2 Z Series Compact Cylinder, a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features newly added sizes of 4, 6, and 10, expanding the lineup from 4 to 200. Designed with a compact body, it allows for efficient use of space and offers the flexibility to mount small auto switches on four surfaces, with two surfaces available for sizes 12 to 25. The cylinder's design ensures no projection of the auto switch, maintaining a sleek profile. Enjoy a lighter weight, reduced by 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. The addition of pivot brackets for double clevis and compact type foot brackets enhances its adaptability. Conveniently, part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately. With the inclusion of an auto switch, this series (CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2) offers a comprehensive solution for your automation requirements.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 5 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
