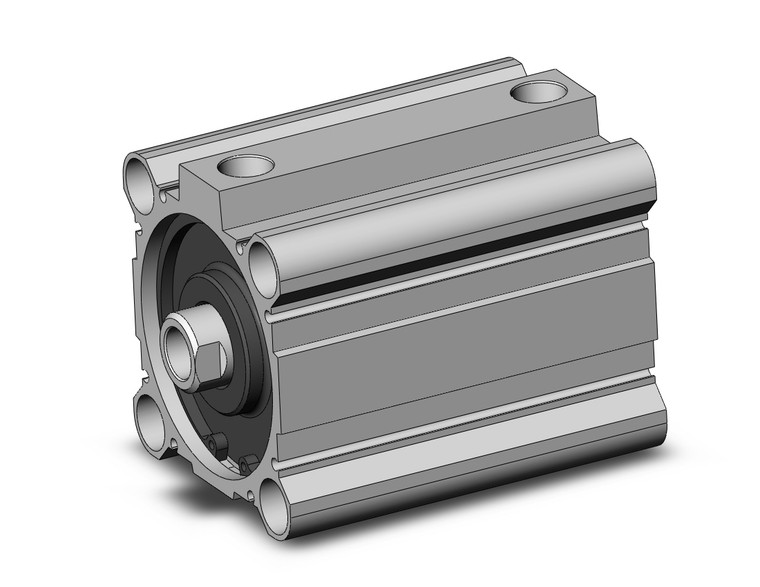

SMC CDQ2B80-75DZ-M9BL CQ2 Z Series Compact Cylinder
SMC
$207.70
The SMC CDQ2B80-75DZ-M9BL CQ2 Z Series Compact Cylinder is a versatile and space-efficient solution for your pneumatic needs. This cylinder features a newly expanded size range, including 4, 6, and 10, and offers a comprehensive lineup from 4 to 200. Its compact design allows for easy integration into tight spaces, while the ability to mount small auto switches on up to four surfaces enhances its functionality. The cylinder's design ensures no projection of the auto switch, maintaining a sleek profile. Additionally, it boasts a lighter weight, reduced by 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. The inclusion of pivot brackets for double clevis and compact type foot brackets adds to its versatility. For added convenience, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order these components separately. The cylinder is compatible with auto switches from the CDQ2 series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, ensuring seamless integration into your system.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 80 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 75 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
