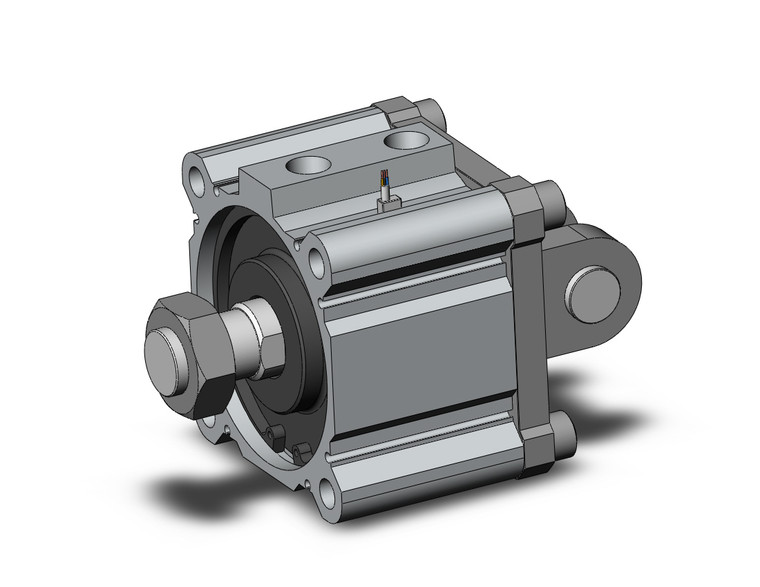

SMC CDQ2D100-15DCMZ-M9PWVLS CQ2 Z Series Compact Cylinder
SMC
$241.55
The SMC CDQ2D100-15DCMZ-M9PWVLS CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features newly added sizes of 4, 6, and 10, expanding the lineup from 4 to 200. Its compact body design allows for efficient use of space, making it ideal for applications where space is at a premium. The cylinder is designed to accommodate small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch.
This model is lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, enhancing ease of installation and operation. The addition of pivot brackets for double clevis and compact type foot brackets provides flexibility in mounting options. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder.
The CQ2 Z Series also supports auto switch integration, compatible with Series CDQ2 models including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering a comprehensive solution for automated systems.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Double Clevis Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 15 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper And Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 1 pc.
- Made To Order:
- Standard
