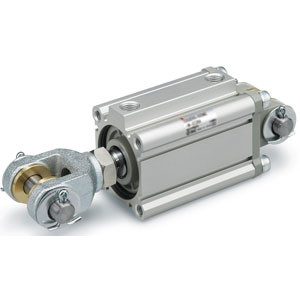

SMC CDQ2D40-20DCMZ-XC26A CQ2D-XC26 Series Double Clevis Width Double Knuckle Width 12.5 mm,16.5 mm,19.5 mm

SMC CDQ2D40-20DCMZ-XC26A CQ2D-XC26 Series Double Clevis Width Double Knuckle Width 12.5 mm,16.5 mm,19.5 mm

SMC
SKU:
CDQ2D40-20DCMZ-XC26A
$83.45
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CQ2D-XC26 Series Double Clevis Width Double Knuckle Width 12.5 mm,16.5 mm,19.5 mm

  • Sizes ?4, ?6, and ?10 have been added [New];
  • ?4 to ?200 lineup;
  • Space-saving cylinder designed with a compact body;
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces;?for ?12 to ?25);
  • No projection of auto switch;
  • Lighter weight: Reduced by 5 to 13% (compared with the existing;?CQ2 series);
  • Added pivot brackets for double clevis and compact type foot brackets;
  • Part numbers with rod end bracket and/or mounting bolt available;?(Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,;?CDQP2, CDQ2 S, CDBQ2)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Double Clevis Style
    Bore Size:
    Bore Size 40 mm
    Port Thread Type:
    Rc
    Cylinder Stroke:
    Standard Stroke 20 mm
    Action:
    Double Acting
    Body Option:
    With Rubber Bumper And Rod End Male Thread
    Auto Switch Mounting Groove:
    4 Sides
    Rod End Bracket:
    None
    Auto Switch:
    Without Auto Switch
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Double Clevis Width/Double Knuckle Width:16.5 mm
