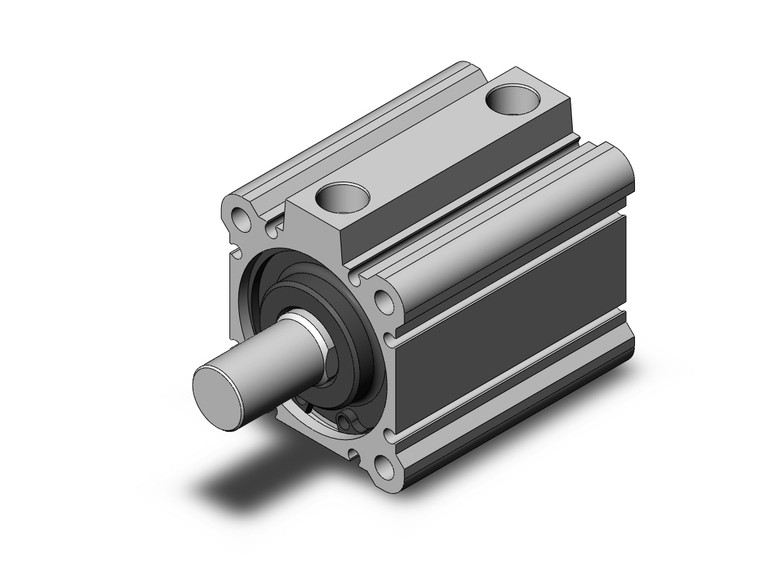

SMC CDQ2KA50TN-40DMZ Compact Cylinder, Cq2-Z

SMC CDQ2KA50TN-40DMZ CQ2K Z Series Compact Cylinder

SMC
SKU:
CDQ2KA50TN-40DMZ
Availability:
Contact us to confirm availability and lead times.
$88.75
Condition:
New
Current Stock:
Description

CQ2K Z Series Compact Cylinder

  • Sizes Φ4, Φ6, and Φ10 have been added [New];
  • Φ4 to Φ200 lineup;
  • Space-saving cylinder designed with a compact body;
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces;　for Φ12 to Φ25);
  • No projection of auto switch;
  • Lighter weight: Reduced by 5 to 13% (compared with the existing;　CQ2 series);
  • Added pivot brackets for double clevis and compact type foot brackets;
  • Part numbers with rod end bracket and/or mounting bolt available;　(Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,;　CDQP2, CDQ2 S, CDBQ2)
    • Additional Information
    Built-in Magnet:
    Built-in Magnet
    Mounting Style:
    Both Ends Tapped Style
    Bore Size:
    Bore Size 50 mm
    Port Thread Type:
    NPT
    Cylinder Stroke:
    Standard Stroke 40 mm
    Dual Stroke Mark:
    Without Two Stroke Mark
    Cylinder Stroke 2:
    Without Cylinder Stroke 2
    Body Option:
    Rod End Male Thread
    Auto Switch Mounting Groove:
    Φ12-Φ25 2 Sides/Φ32-Φ63 4 Sides
    Auto Switch:
    Without Auto Switch
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
