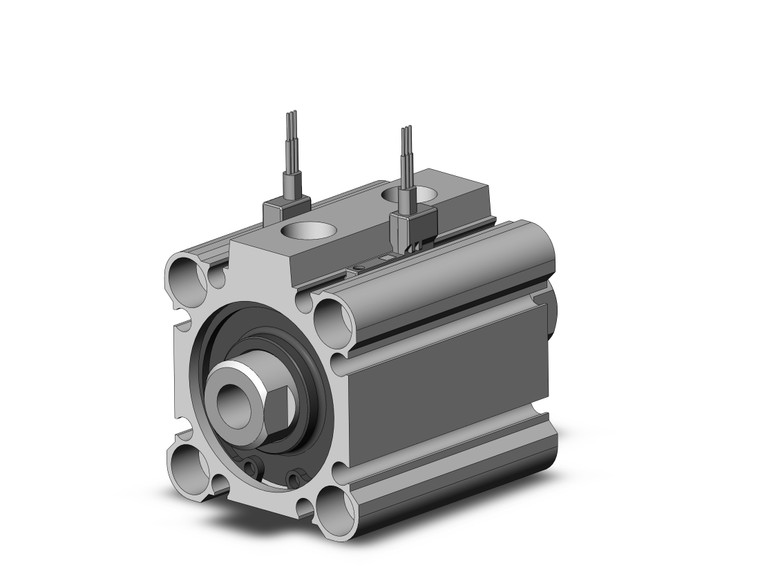

SMC CDQ2WB32-10DZ-M9PVSAPC3 CQ2W Z Series Compact Cylinder
SMC
$236.70
The SMC CDQ2WB32-10DZ-M9PVSAPC3 CQ2W Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. With sizes ranging from 4 to 200, including the newly added 4, 6, and 10, this cylinder offers a comprehensive lineup to suit various requirements.
Designed for convenience, the CQ2W Z Series allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. The cylinder is also lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, enhancing its efficiency and ease of use.
For added flexibility, the cylinder includes pivot brackets for double clevis and compact type foot brackets. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. Additionally, the cylinder is compatible with auto switches from the CDQ2 series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing a comprehensive solution for your automation needs.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 10 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 3 Pcs.
- Made To Order:
- Standard
