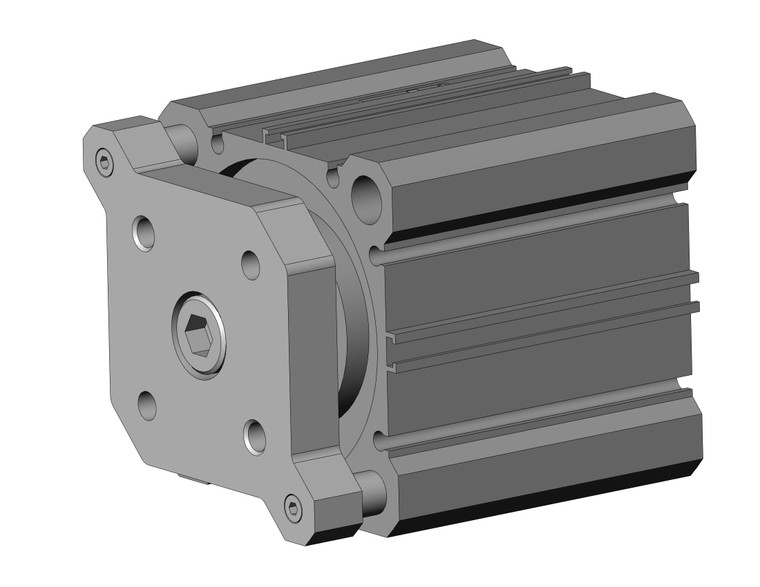

SMC CDQMA63-30-M9PSAPC CQM Series Compact Cylinder
SMC
$253.35

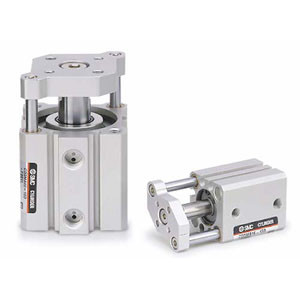

The SMC CDQMA63-30-M9PSAPC CQM Series Compact Cylinder is engineered for precision and durability, featuring a built-in guide rod that enhances stability and performance. With a non-rotating accuracy of ±0.2° or less, this cylinder ensures precise operation in demanding applications. It offers superior lateral load resistance, up to 4 times more than standard compact cylinders, making it ideal for heavy-duty tasks. The design allows for direct load mounting, providing versatility and ease of use. Additionally, the mounting dimensions are compatible with the CQS and CQ2 series, ensuring seamless integration into existing systems. Equipped with an auto switch, this cylinder is part of the CDQM series, offering reliable and efficient performance for your industrial needs.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Both Ends Tapped Style
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- M thread,Rc
- Cylinder Stroke:
- Standard Stroke 30 mm
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
