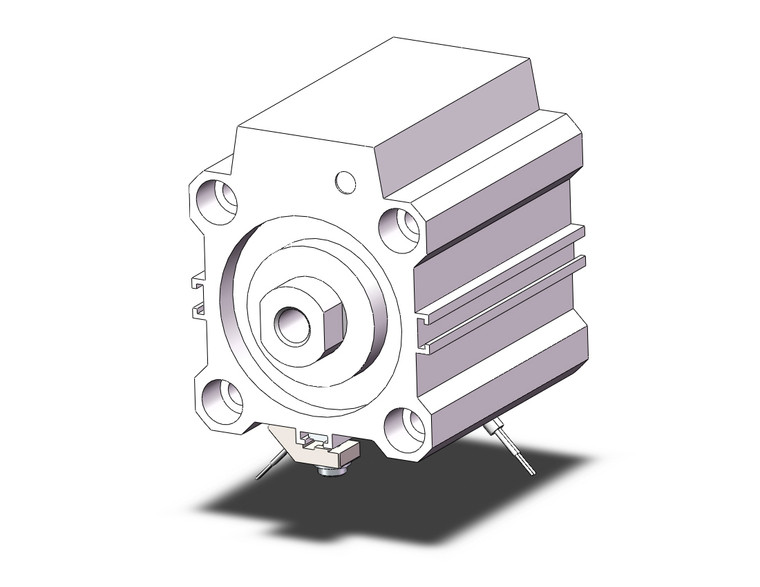

SMC CDQP2B40-20DC-M9BVL Compact Cylinder, Cq2

SMC CDQP2B40-20DC-M9BVL CQP2 Series Compact Cylinder

SMC
SKU:
CDQP2B40-20DC-M9BVL
Availability:
Factory stock
$184.85
Condition:
New
Current Stock:
Description

CQP2 Series Compact Cylinder

  • Sizes Φ4, Φ6, and Φ10 have been added [New];
  • Φ4 to Φ200 lineup;
  • Space-saving cylinder designed with a compact body;
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces;　for Φ12 to Φ25);
  • No projection of auto switch;
  • Lighter weight: Reduced by 5 to 13% (compared with the existing;　CQ2 series);
  • Added pivot brackets for double clevis and compact type foot brackets;
  • Part numbers with rod end bracket and/or mounting bolt available;　(Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,;　CDQP2, CDQ2 S, CDBQ2)
    • Additional Information
    Built-in Magnet:
    Built-in Magnet
    Type:
    Pneumatic
    Bore Size:
    Bore Size 40 mm
    Port Thread Type:
    Rc/M Thread
    Cylinder Stroke:
    Standard Stroke 20 mm
    Body Option:
    With Rubber Bumper
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, Perpendicular, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
