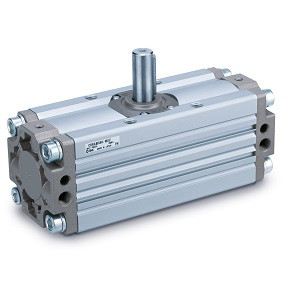

SMC CDRA1BSU50TF-90Z-M9PMDPC CRA1 Series Rotary Actuator Rack & Pinion Type Size
SMC
$439.70
The SMC CDRA1BSU50TF-90Z-M9PMDPC is a high-performance rotary actuator from the CRA1 Series, designed with a rack and pinion type mechanism. This compact actuator is equipped with auto switches (D-M9 type) that can be conveniently mounted on two surfaces, allowing for easy installation from the front. The design boasts a weight reduction of up to 14%, making it a lightweight yet robust solution for various applications. It features an air cushion for smooth operation, with an easily adjustable cushion valve to fine-tune performance. Ideal for automation systems, this actuator ensures reliable and efficient motion control.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic Type
- Shaft Type:
- Single Shaft
- Type:
- Angle Adjustable Type
- Size:
- Size 50
- Port Type:
- G
- Rotation Angle:
- 90°
- Cushion:
- Without Air cushion
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
