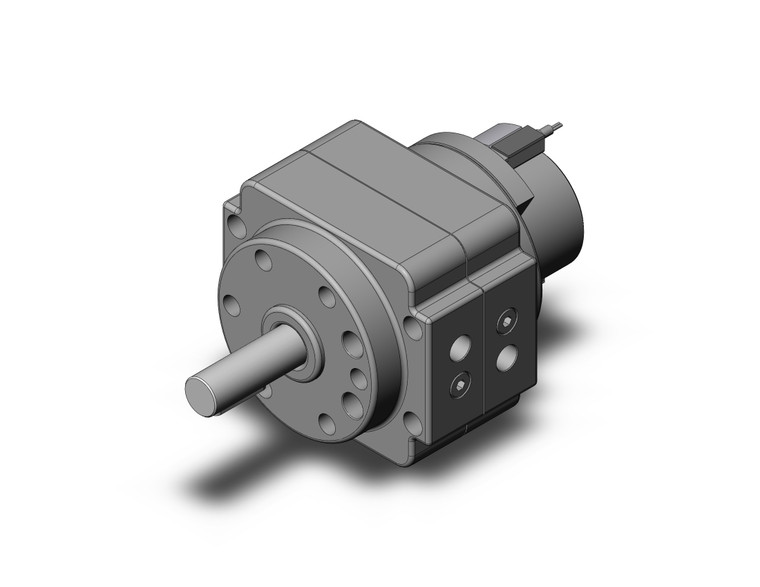

SMC CDRB1BW63-90D-T79SAPC CRB1 Series Rotary Actuator Vane Type
SMC
$371.30
The SMC CDRB1BW63-90D-T79SAPC CRB1 Series Rotary Actuator Vane Type is designed for versatile and efficient performance. This actuator allows for flexible auto switch mounting positions, ensuring adaptability to various setups. It features direct mounting capabilities and offers selectable connection port positions, including side ported and axial ported options, to suit your specific application needs. Operating efficiently at low pressures of 0.15 MPa for sizes ranging from 50 to 100, this actuator is equipped with an auto switch for enhanced functionality. Ideal for a range of industrial applications, the CRB1 Series ensures reliable and precise motion control.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic
- Shaft Type:
- Double Shaft (Long Shaft Key & Four Chamfers)
- Size:
- 63
- Option 1:
- Standard
- Rotation Angle:
- 90°
- Vane Type:
- Double Vane
- Connecting Port:
- Side Ported
- Option 2:
- Standard
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard/Rc
