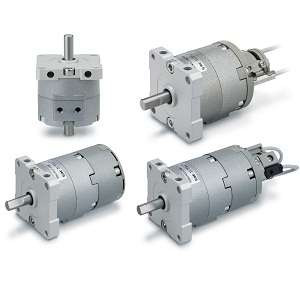

SMC CDRBU2WU40-90SZ-T79L CRBU2 Series Free Mount Type Rotary Actuator Vane Type
SMC
$249.95
The SMC CDRBU2WU40-90SZ-T79L CRBU2 Series Free Mount Type Rotary Actuator Vane Type is designed for versatile and efficient performance. This actuator allows for the starting position to be adjusted freely, accommodating various installation conditions. It boasts a lightweight design, with a 12% reduction in weight, making it easier to handle and install. The actuator can be directly mounted in one of six different ways, providing flexibility in setup. Additionally, users can adjust the angle to their preference and set the auto switch mounting position as desired. This model includes an auto switch, compatible with Series CDRBU2: CDRBU2-Z, CDRBU2WU-Z, ensuring seamless integration into your system.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Shaft Type:
- Double Shaft With Single Flat (Size 10 To 30)
- Angle Adjuster:
- With Angle Adjuster Unit
- Size:
- 40
- Rotating Angle:
- 90°
- Vane Type:
- Single Vane
- Connecting Port:
- Side Ported
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
