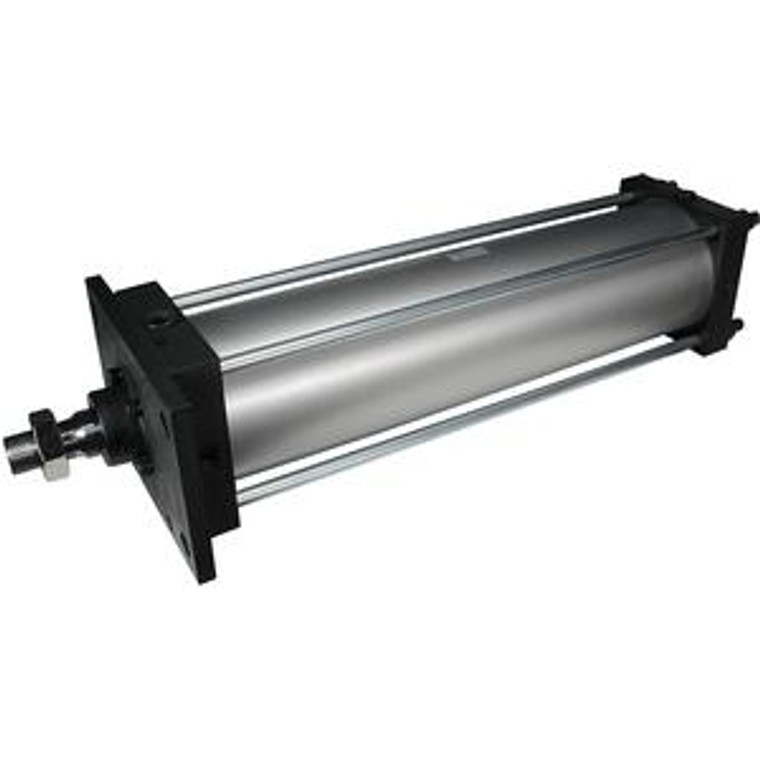

SMC CDS1CN200TN-400-M9PWVMDPC CDS1 Series Air Cylinder

SMC CDS1CN200TN-400-M9PWVMDPC CDS1 Series Air Cylinder

SMC
SKU:
CDS1CN200TN-400-M9PWVMDPC
Availability:
Contact us to confirm availability and lead times.
$1,300.10
Condition:
New
Current Stock:
Description

CDS1 Series Air Cylinder

  • Large bore air cylinder of the square cover, tie-rod type;
  • With auto switch (Series CDS1: CDS1, CDS1W, CDS1 Q);;?The air hydro type is only available in ?125, ?140 and ?160
    • Additional Information
    Mounting Style:
    Single Clevis Style
    Type:
    Non-lube
    Bore Size:
    Bore Size 200 mm
    Port Thread Type:
    NPT
    Cylinder Stroke:
    Standard Stroke 400 mm
    Suffix For Cylinder:
    With Cushion In Both Sides(Air-hydro Type Has Nocushion.)
    Stroke Adjustment Symbol:
    None
    Dual Stroke Mark:
    Without Two Stroke Mark
    Cylinder Stroke 2:
    Without Cylinder Stroke 2
    Suffix For Cylinder2:
    With Cushion In Both Sides(Air-hydro Type Has Nocushion.)
    Auto Switch:
    2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
