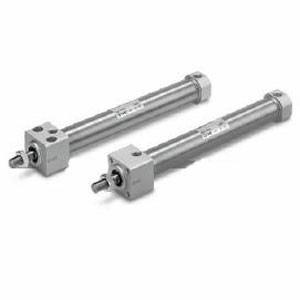

SMC CM2RA40-125Z Round Body Cylinder

SMC CM2RA40-125Z CM2R-Z Series Air Cylinder

SMC
SKU:
CM2RA40-125Z
Availability:
Contact us to confirm availability and lead times.
$71.05
Condition:
New
Current Stock:
Description

CM2R-Z Series Air Cylinder

  • Female rod end available as standard;
  • Easy fine adjustment of auto switch position;
  • Single clevis and trunnion pivot brackets are available;
  • Part numbers with rod end bracket and/or pivot bracket available (Not necessary to order a bracket for the applicable cylinder separately);
  • With auto switch (Series CDM2-Z: CDM2?CDM2W?CDM2K?CDM2KW?CDM2R?CDM2RK)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    Without Auto Switch
    Type:
    Pneumatic
    Mounting Style:
    Bottom Mounting Type
    Bore Size:
    Bore Size 40 mm
    Cylinder Stroke:
    Standard Stroke 125 mm
    Dual Stroke Mark:
    Without Two Stroke Mark
    Cylinder Stroke 2:
    Without Cylinder Stroke 2
    Cushion:
    Rubber Bumper
    Rod And Thread:
    Rod End Male Thread
    Rod End Bracket:
    None
    Auto Switch:
    Without Auto Switch
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
