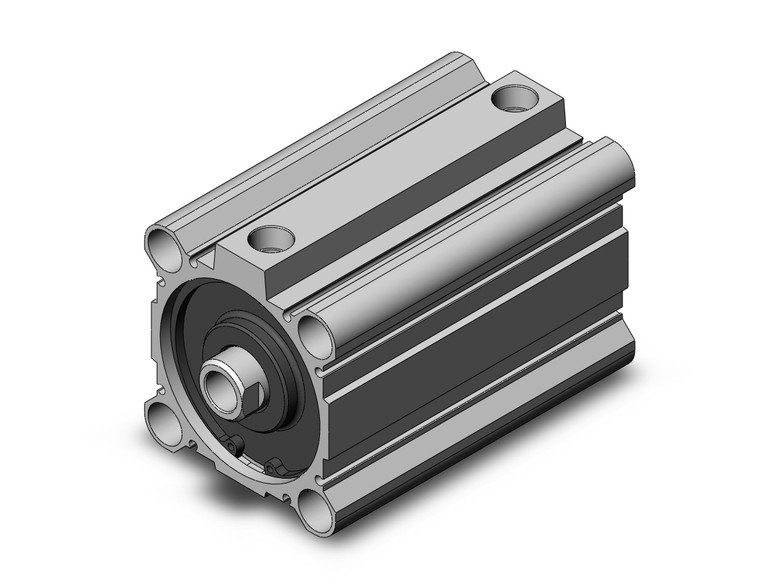

SMC CQ2B80-100DZ-XB6 Compact Cylinder, Cq2-Z

SMC CQ2B80-100DZ-XB6 CQ2 Z Series Compact Cylinder

SMC
SKU:
CQ2B80-100DZ-XB6
$149.10
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CQ2 Z Series Compact Cylinder

  • Sizes 4, 6, and 10 have been added [New];
  • 4 to 200 lineup;
  • Space-saving cylinder designed with a compact body;
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces; for 12 to 25);
  • No projection of auto switch;
  • Lighter weight: Reduced by 5 to 13% (compared with the existing; CQ2 series);
  • Added pivot brackets for double clevis and compact type foot brackets;
  • Part numbers with rod end bracket and/or mounting bolt available; (Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,; CDQP2, CDQ2 S, CDBQ2)
    • Additional Information
    Built-in Magnet:
    Without Built-in Magnet
    Mounting Style:
    Through-hole (Standerd)
    Type:
    Pneumatic
    Bore Size:
    Bore Size 80 mm
    Port Thread Type:
    Rc/M Thread
    Cylinder Stroke:
    Standard Stroke 100 mm
    Dual Stroke Mark:
    Without Two Stroke Mark
    Cylinder Stroke 2:
    Without Cylinder Stroke 2
    Body Option:
    Standard (Rod End Female Thread)
    Auto Switch Mounting Groove:
    12- 25 2 Sides/ 32- 100 4 Sides
    Mounting Bolt:
    None
    Rod End Bracket:
    None
    Auto Switch:
    Without Auto Switch
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Heat Resistant Cylinder (–10 to 150°C) w/o Auto Switch Only
