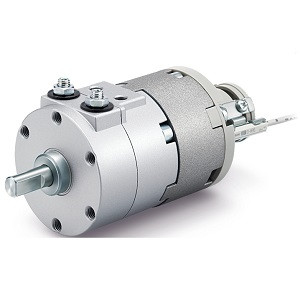

SMC CRBW30-180-CM CRB-C Series Vane Type Rotary Actuator With Vertical Auto Switch Unit and Angle Adjustment Unit

SMC CRBW30-180-CM CRB-C Series Vane Type Rotary Actuator With Vertical Auto Switch Unit and Angle Adjustment Unit

SMC
SKU:
CRBW30-180-CM
$156.70
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CRB-C Series Vane Type Rotary Actuator With Vertical Auto Switch Unit and Angle Adjustment Unit

  • A 270° rotating angle specification has been added. (Size: 10, 15, 40) [New];
  • Features a compact body with a built-in angle adjustment unit and auto switch unit (Size: 20, 30, 40); Overall length: 44% shorter, Weight: 48% lighter;
  • Piping, wiring, and angle adjustment can be performed on the same side for easier mounting;
  • Easy-to-adjust start and end positions with the angle adjustment bolts (as standard);
  • The position of the chamfered portion of the shaft can be easily checked using the rotating angle indicator. (Only for the CDRB with auto switch);
  • Each of the units below for the CRB2 series can be mounted to the CRB series
    • Additional Information
    Shaft Type:
    Shaft Type:Double Shaft.Long Shaft:Single Shaft
    Size:
    30
    Rotation Angle:
    180°
    Auto Switch:
    Without Auto Switch (Built-In Magnet)
    Number Of Auto Switches:
    2 pcs. Or None
    With Vertical Auto Switch Unit And Angle Adjustment Unit:
    With Vertical Auto Switch Unit For D-M9 And Angle Adjustment Unit (Built-in Magnet)
