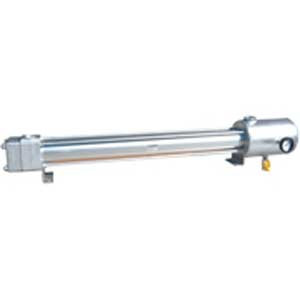

SMC HAW2-04D After Cooler, Watrer Cooled

Series HAW is able to cool high temperature compressed air from compressors down to 40 C or less while efficiently removing moisture from the air. As the HAW is water cooled, it can be used where there is high temperature, high moisture and heavy foreign particles. A thermometer makes it easy to check outlet air temperature.

AutoCAD File
