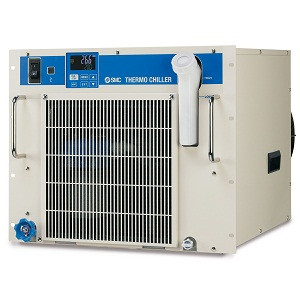

SMC HRR010-AN-20-UZ Rack Mount Refrigeration Chiller

SMC HRR010-AN-20-UZ HRR Series Thermo-chiller/Rack Mount Type Single-phase 200/230 VAC

SMC
SKU:
HRR010-AN-20-UZ
$3,970.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

HRR Series Thermo-chiller/Rack Mount Type Single-phase 200/230 VAC

;

  • Operable without the need to remove the unit from the rack; Front access: Simple to control, service, and maintain with all filters and drainage accessible via the front panel;
  • Space saving: Multiple chillers can be mounted to a 19-inch rack.;
  • Cooling capacity: 1.1/1.2/1.8/2.4/3.0/5.1 kW (60 Hz);
  • Temperature stability: ±0.1;
  • Global power supply:; Single-phase 100 VAC (50/60 Hz)/115 VAC (60 Hz); Single-phase 200 to 230 VAC (50/60 Hz)

    The SMC HRR010-AN-20-UZ HRR Series Thermo-chiller is a versatile and efficient cooling solution designed for seamless integration into a 19-inch rack. This rack mount type chiller operates on a single-phase 200/230 VAC power supply, making it suitable for global applications. With a cooling capacity ranging from 1.1 to 5.1 kW at 60 Hz, it ensures optimal temperature control with a stability of ±0.1. The unit is designed for easy front access, allowing for simple control, service, and maintenance without the need to remove it from the rack. All filters and drainage are conveniently accessible via the front panel, enhancing user convenience. This space-saving design allows for multiple chillers to be mounted together, maximizing efficiency and functionality in your setup.

    • Additional Information
    Cooling Capacity:
    Cooling Capacity Air-cooled:950/1100 W (50/60 Hz)
    Cooling Method:
    Air-cooled Refrigeration
    Pipe Thread Type:
    NPT (With Rc-NPT Conversion Fitting Set)
    Power Supply:
    Single-phase 200 to 230 VAC (50/60 Hz)
    Option 1:
    Conforming To UL Standards
    Option 2:
    Less Option (No Flow Sensor, No Water Leakage Sensor, No Particle Filter, No Bypass Valve, No Retaining Clip)
