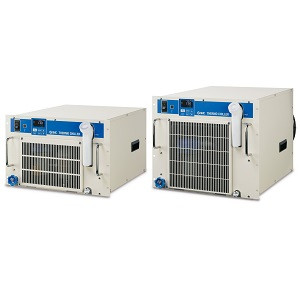

SMC HRR012-AN-10-MTU Rack Mount Refrigeration Chiller

SMC HRR012-AN-10-MTU HRR Series Thermo-chiller/Rack Mount Type Single-phase 100/115 VAC

SMC
SKU:
HRR012-AN-10-MTU
$6,480.00
Condition:
New
Current Stock:
Description

HRR Series Thermo-chiller/Rack Mount Type Single-phase 100/115 VAC

;

  • Operable without the need to remove the unit from the rack; Front access: Simple to control, service, and maintain with all filters and drainage accessible via the front panel;
  • Space saving: Multiple chillers can be mounted to a 19-inch rack.;
  • Cooling capacity: 1.1/1.2/1.8/2.4/3.0/5.1 kW (60 Hz);
  • Temperature stability: ±0.1;
  • Global power supply:; Single-phase 100 VAC (50/60 Hz)/115 VAC (60 Hz); Single-phase 200 to 230 VAC (50/60 Hz)

    The SMC HRR012-AN-10-MTU HRR Series Thermo-chiller is a versatile and efficient cooling solution designed for seamless integration into a 19-inch rack. This rack mount type chiller operates on a single-phase 100/115 VAC power supply, making it suitable for global applications. With a cooling capacity ranging from 1.1 to 5.1 kW at 60 Hz, it ensures optimal temperature control with a stability of ±0.1. The unit is designed for easy front access, allowing for simple control, service, and maintenance without the need to remove it from the rack. All filters and drainage are conveniently accessible via the front panel, enhancing user convenience. This space-saving design allows for multiple chillers to be mounted together, maximizing efficiency and functionality in your setup.

    • Additional Information
    Cooling Capacity:
    1000/1200 W (50/60Hz)
    Cooling Method:
    Air-cooled Refrigeration
    Pipe Thread Type:
    NPT (With Rc-NPT Conversion Fitting Set)
    Power Supply:
    Single-phase 100 VAC (50/60 Hz),115 VAC (60 Hz)
    Option 1:
    Applicable To DI Water Piping + High-pressure Pump Mounted
    Option 2:
    None
    Option 3:
    None
