SMC IRV10-LC08GN Regulator, Vacuum

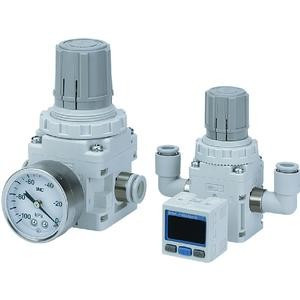

SMC IRV10-LC08GN IRV10/20 Series Vacuum Regulator

SMC
SKU:
IRV10-LC08GN
Availability:
Factory stock
$82.35
Condition:
New
Current Stock:
Description

IRV10/20 Series Vacuum Regulator

  • Allows adjustment of vacuum line pressure;
  • Single sided connections series;
  • Weight reduced by 20% (Compared with the existing IRV2000 with;?IRV20 fitting);
  • Built-in One-touch fittings;
  • Easy to attach/detach the pressure gauge or digital pressure switch due;?to attachment by clip;
  • Mounting direction of the pressure gauge or digital pressure switch can;?be changed. (Standard connections only);
  • Mounting angle of the pressure gauge or digital pressure switch can be;?changed easily (in 60 degree increments)
    • Additional Information
    Body Size:
    Max. Flow 140 L/min (ANR)
    Specifications:
    Standard connections
    Fittings:
    Elbow
    Connection tubing O.D.:
    8 mm
    Accessory a:
    None
    Accessory b:
    Gauge Nut Assembly
    Made To Order:
    Standard
