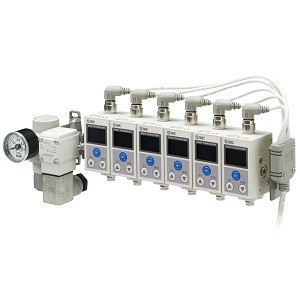

SMC ISA3-FCP-M3TB-R1 ISA3 Series 3-Color Display Digital Gap Checker
SMC
$793.00
The SMC ISA3-FCP-M3TB-R1 ISA3 Series 3-Color Display Digital Gap Checker is an innovative tool designed to enhance precision and efficiency in your workspace. With its newly added centralized lead wire to the manifold, this gap checker allows you to easily determine if a workpiece is correctly placed at a glance. The intuitive design enables you to find the clearance distance between the detection surface and the workpiece effortlessly. Enjoy the convenience of simple settings, allowing adjustments while monitoring the displayed value. This device is also energy-efficient, boasting a 60% reduction in air consumption, and features improved drainage resistance, offering durability that is 10 times greater than previous models. Perfect for ensuring accuracy and reliability in your operations.
- Rated Distance Range:
- 0.01 To 0.03 mm
- Porting Specifications:
- Supply Side:Rc1/8
- 6 One-touch Fitting (Rated Distance Range:0.02 To 0.15 mm/0.05 To 0.30 mm) Output Specification:
- PNP 1 Output
- Unit Specifications Of Pressure Value:
- Fixed SI Unit
- Stations:
- 3 Stations
- Option 1 (Cable):
- Centralized Lead Wire (With Bracket)
- Option 2 (Bracket):
- With Bracket
- Control Unit:
- With Control Unit (Supply Port:Right Side)
- Regulator:
- With Regulator Round Type Pressure Gauge 0.4MPa MPa Single Notation
- 2 Port Solenoid Valve Rated Voltage (With Control Unit):
- 24 VDC or Without Control Unit
- Made To Order:
- Standard
