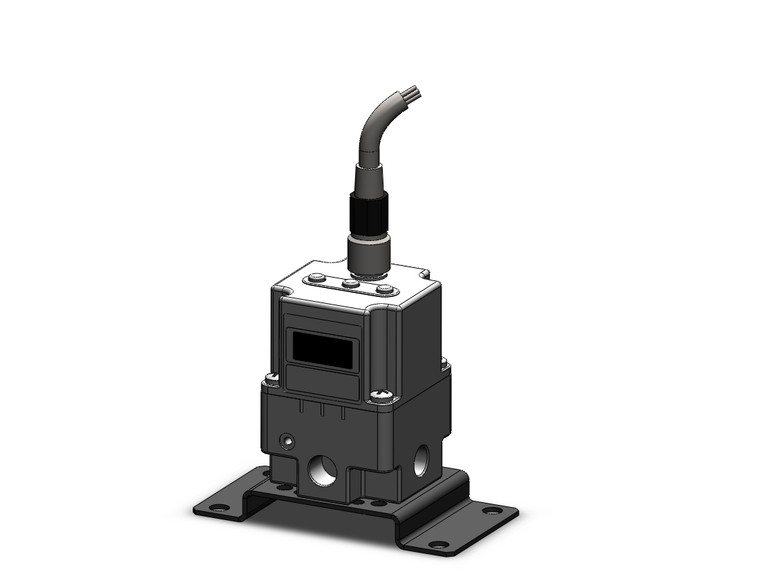

SMC ITV1011-32N1BS5 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$297.50
The SMC ITV1011-32N1BS5 is a high-performance electro-pneumatic regulator from the ITV1000/2000/3000 Series, designed for precise control of air pressure in response to electric signals. This regulator offers stepless control, ensuring smooth and accurate adjustments. With a sensitivity of 0.2 kPa for the 100 kPa specification, it provides exceptional precision. The device maintains a linearity of ±1% or less (F.S.) and a hysteresis of 0.5% or less (F.S.), ensuring reliable performance. It supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile for integration into different systems. Ideal for applications requiring meticulous air pressure management, this regulator is a robust solution for industrial automation needs.
- Type:
- 1000 type
- Pressure Range:
- 0.1 MPa
- Power Supply Voltage:
- 12 To 15 VDC
- Input Signal:
- Voltage Type 0 To 10 VDC
- Monitor Output:
- Switch Output/NPN Output
- Thread Type:
- NPT
- Port Size:
- 1/8
- Bracket:
- Flat Bracket
- Cable connector:
- Straight Type 3 m
- Pressure display unit:
- kPa
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
