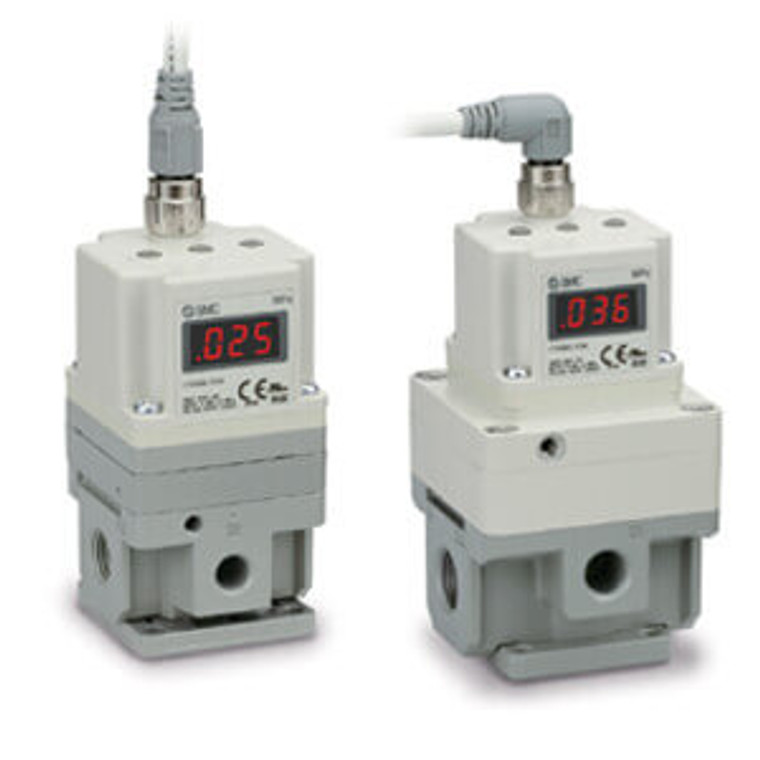

SMC ITV1030-04N2CL5 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$325.15
The SMC ITV1030-04N2CL5 is a high-performance electro-pneumatic regulator from the ITV1000/2000/3000 Series, designed for precise control of air pressure in response to electric signals. This advanced regulator offers stepless control, ensuring smooth and accurate pressure adjustments. With a sensitivity of 0.2 kPa and a linearity of ±1% or less (F.S.), it guarantees reliable performance in various applications. The hysteresis is maintained at 0.5% or less (F.S.), providing consistent output. It supports multiple communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile and easy to integrate into existing systems. Ideal for industries requiring precise pneumatic control, this regulator is a robust solution for enhancing operational efficiency.
- Type:
- 1000 type
- Pressure Range:
- 0.5 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 4 To 20 mA DC (Sink Type)
- Thread Type:
- NPT
- Port Size:
- 1/4
- Bracket:
- L-Bracket
- Cable connector:
- Right angle type 3 m
- Pressure display unit:
- kPa
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
