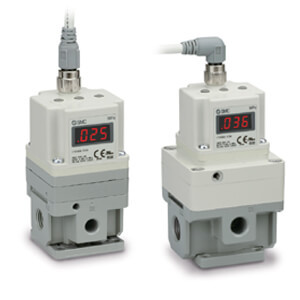

SMC ITV2011-04N3BN4 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$390.95
The SMC ITV2011-04N3BN4 is a high-performance electro-pneumatic regulator from the ITV1000/2000/3000 Series, designed for precise control of air pressure in response to electric signals. This advanced regulator offers stepless control, ensuring smooth and accurate pressure adjustments. With a sensitivity of 0.2 kPa (for the 100 kPa specification), it provides exceptional responsiveness to changes in input signals. The regulator boasts a linearity of ±1% or less (Full Scale), ensuring consistent performance across its operating range. Additionally, it features a hysteresis of 0.5% or less (Full Scale), minimizing any lag in response. For seamless integration into various systems, the regulator supports multiple communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C. Ideal for applications requiring precise pressure control, the SMC ITV2011-04N3BN4 is a reliable choice for enhancing system efficiency and performance.
- Type:
- 2000 type
- Pressure Range:
- 0.1 MPa
- Power Supply Voltage:
- 12 To 15 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 4 To 20 mA DC (Sink Type)
- Thread Type:
- NPT
- Port Size:
- 3/8
- Bracket:
- Flat Bracket
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- psi
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
