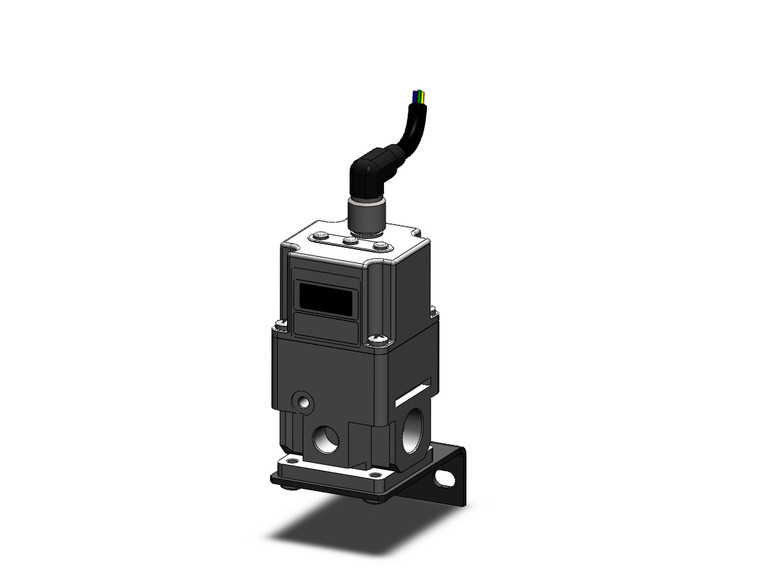

SMC ITV2050-03N3CL4 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$382.80
The SMC ITV2050-03N3CL4 is part of the ITV1000/2000/3000 Series Electro-pneumatic Regulators, designed for precise and stepless control of air pressure in response to electric signals. This advanced regulator boasts a sensitivity of 0.2 kPa, ensuring accurate pressure adjustments. With a linearity of ±1% or less (F.S.) and a hysteresis of 0.5% or less (F.S.), it guarantees reliable performance. The device supports multiple communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile for various industrial applications. Ideal for environments requiring precise pneumatic control, this regulator is engineered to deliver exceptional accuracy and efficiency.
- Type:
- 2000 type
- Pressure Range:
- 0.9 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Switch Output/PNP Output
- Thread Type:
- NPT
- Port Size:
- 3/8
- Bracket:
- L-Bracket
- Cable connector:
- Right angle type 3 m
- Pressure display unit:
- psi
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
