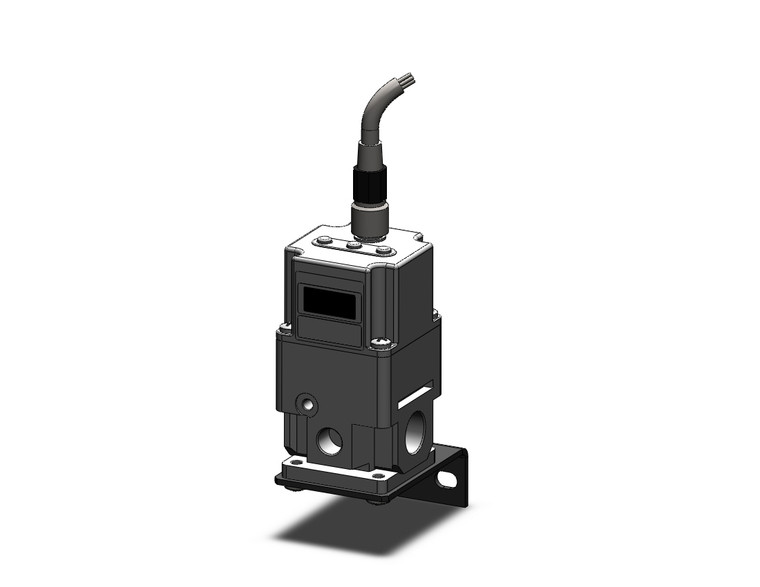

SMC ITV2050-043CS4 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$410.45
The SMC ITV2050-043CS4 is a versatile electro-pneumatic regulator from the ITV1000/2000/3000 Series, designed for precise control of air pressure in response to electric signals. It offers stepless regulation, ensuring smooth and accurate adjustments. With a sensitivity of 0.2 kPa (for the 100 kPa specification), this regulator provides exceptional precision. Its linearity is maintained at ±1% or less of full scale, while hysteresis is kept at 0.5% or less, ensuring reliable performance. The device supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it adaptable to a wide range of industrial applications.
- Type:
- 2000 type
- Pressure Range:
- 0.9 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 4 To 20 mA DC (Sink Type)
- Thread Type:
- Rc
- Port Size:
- 3/8
- Bracket:
- L-Bracket
- Cable connector:
- Straight Type 3 m
- Pressure display unit:
- psi
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
