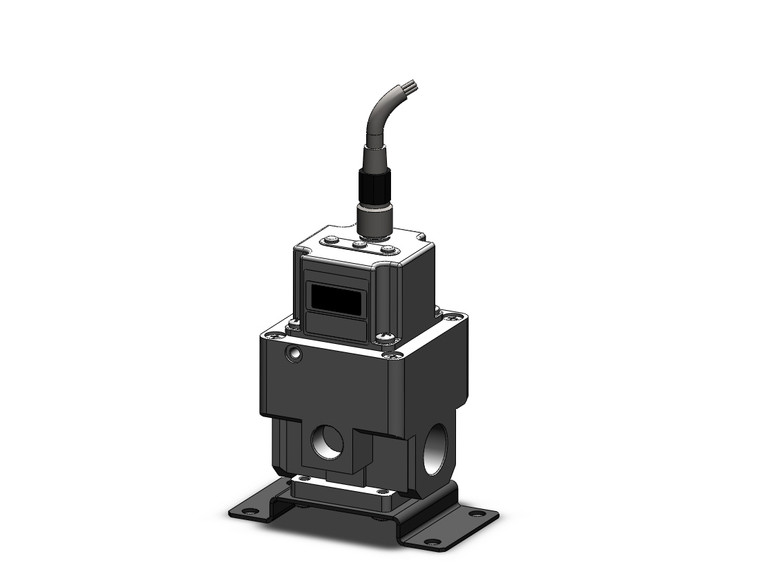

SMC ITV3030-044BS ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$432.50
The SMC ITV3030-044BS is a high-performance electro-pneumatic regulator from the ITV1000/2000/3000 Series, designed for precise control of air pressure in response to electric signals. It offers stepless control, ensuring smooth and accurate adjustments with a sensitivity of 0.2 kPa for the 100 kPa specification. The regulator boasts a linearity of ±1% or less (F.S.) and a hysteresis of 0.5% or less (F.S.), making it ideal for applications requiring high precision. It supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, providing versatile connectivity options for integration into complex systems.
- Type:
- 3000 type
- Pressure Range:
- 0.5 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 4 To 20 mA DC (Sink Type)
- Thread Type:
- Rc
- Port Size:
- 1/2
- Bracket:
- Flat Bracket
- Cable connector:
- Straight Type 3 m
- Pressure display unit:
- MPa
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
