SMC

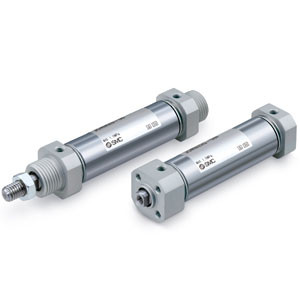

SMC JCDMB20-150-M9PMAPC JCM Series Air Cylinder Double Acting,Single Rod

(No reviews yet) Write a Review
SKU:
JCDMB20-150-M9PMAPC
MPN:
JCDMB20-150-M9PMAPC
Condition:
New
With Auto Switch(Built-in Magnet):
With Auto Switch
Mounting:
Basic Style(Double Sides Female Thread)
Bore Size:
Bore Size 20 mm
Port Thread Type:
M5
Cylinder Stroke:
Standard Stroke 150 mm
Rod And Thread:
Male Thread
Mounting Nut:
Without Mounting Nut
Rod End Bracket:
No Bracket
Auto Switch:
Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
  • SMC JCDMB20-150-M9PMAPC Round Body Cylinder 875
  • SMC JCDMB20-150-M9PMAPC JCM Series Air Cylinder Double Acting,Single Rod
$112.06

Description

JCM Series Air Cylinder Double Acting,Single Rod

  • A foot type and a flange type have been added [New];
  • Overall length shortened by up to 97 mm;
  • Weight: Max. 54% lighter (0.69 kg?0.32 kg);
  • Various cover types available;
  • Port size: M5 and Rc NPT1/8 available;
  • Male and female rod ends available;
  • With auto switch (JCDM series: JCDM)
