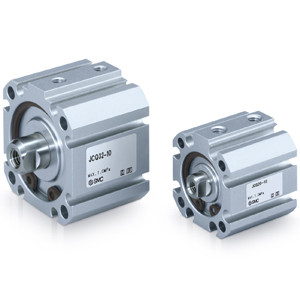

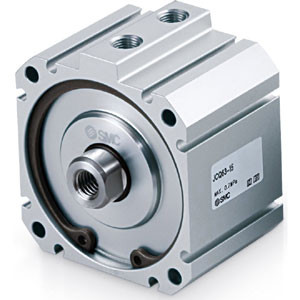

SMC JCDQ32-50 JCQ Series Compact Cylinder Double Acting Single Rod
SMC
$66.75
The SMC JCDQ32-50 JCQ Series Compact Cylinder is engineered for precision and efficiency in demanding industrial applications. This double-acting, single rod cylinder is a part of the innovative JCQ Series, designed to optimize space and performance.
Key features include the addition of axial foot and flange types, expanding its versatility for various mounting configurations. The compact design achieves a significant reduction in dimensions, with an overall length shortened by 6.5 mm, width by 6 mm, and height by 4 mm, making it ideal for applications where space is at a premium.
Engineered for lightweight performance, the JCDQ32-50 model is up to 46% lighter, reducing from 382 g to 204 g, which contributes to enhanced system efficiency and reduced load on supporting structures. The volume is also reduced by up to 40%, further optimizing the cylinder's integration into compact systems.
For enhanced functionality, the JCDQ Series includes an auto switch feature, providing precise control and automation capabilities. This makes it an excellent choice for engineers seeking reliable and efficient pneumatic solutions in manufacturing environments.
Optimize your system's performance with the SMC JCDQ32-50, where compact design meets robust functionality. Ideal for engineers and manufacturing professionals looking to enhance operational efficiency and system integration.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting:
- Through-hole(Standard)
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- M Thread ( 12~ 40),Rc ( 50~ 100)
- Cylinder Stroke:
- Standard Stroke 50 mm
- Mounting Bolt:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
