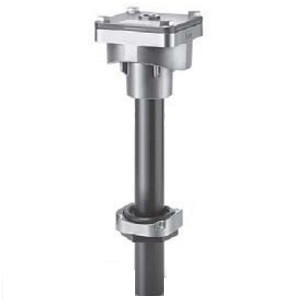

SMC JSXFAH4-06N2-B-A JSXFAH Series Pulse Valve Valve For Dust Collector Immersion Type

SMC JSXFAH4-06N2-B-A JSXFAH Series Pulse Valve Valve For Dust Collector Immersion Type

SMC
SKU:
JSXFAH4-06N2-B-A
$96.00
Condition:
New
Current Stock:
Description

JSXFAH Series Pulse Valve Valve For Dust Collector Immersion Type

  • SMARTVENT type added [New]; Integrated control board eliminates the need for a control box;
  • Life: 10 million cycles or more/10 times or more;
  • High peak pressure and low air consumption; Peak pressure: 15% increase; Air consumption: 35% reduction;
  • Fluid temperature: ?40 to 60?;
  • Supports a wide temperature range from low to high temperature
    • Additional Information
    Valve Type:
    Air Operated
    Piping:
    Immersion Type
    Tank Size:
    4 Inch
    IN/OUT Port Size:
    3/4 (20A)
    Thread Type:
    NPT
    Outlet Pipe Dimensions And Thread Type:
    Pipe Projection:Long
    Fluid And Ambient Temperatures:
    -40 to 60?
    Silencer:
    None
    Pilot Port Size:
    1/4
    Made To Order:
    Pilot Valve Orifice Diameter: Special Specification For ?3 mm To ?5 mm
