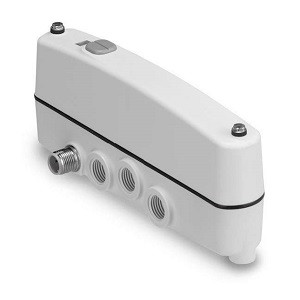

SMC JSY5103-5U-H-WO-U02FL JSY5000-H Series Clean Design Manifold Valve Sub-plate (Single Unit) IP69K Compliant

SMC JSY5103-5U-H-WO-U02FL JSY5000-H Series Clean Design Manifold Valve Sub-plate (Single Unit) IP69K Compliant

SMC
SKU:
JSY5103-5U-H-WO-U02FL
Availability:
Factory stock: 39
$0.00
Condition:
New
Current Stock:
Description

JSY5000-H Series Clean Design Manifold Valve Sub-plate (Single Unit) IP69K Compliant

  • Low fluid accumulation, Easy to clean;
  • Large flow rate: 1,600 L/min (ANR);
  • Enclosure: IP69K;
  • NSF-H1 grease;
  • External parts: FDA-compliant materials; (Metal parts are made of stainless steel 316 with high anti-corrosion performance.);
  • Wiring: Lead wire/Fieldbus type (IO-Link)
    • Additional Information
    Series:
    JSY5000
    Type Of Actuation:
    2 Position Single
    Body:
    Base Mounted (For Plug-in)
    Pilot Valve Exhaust Method:
    Pilot Valve Common Exhaust
    Pilot Type:
    Internal Pilot
    Coil Type:
    Standard
    Rated Voltage:
    24 VDC
    With Light Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor(Non-polar Type)
    Wiring Specification:
    Without M12 Connector Cable
    Port Location:
    Bottom Ported
    1(P),4(A),2(B),5(EA),3(EB) Port Size:
    G1/4 Thread Piping,Without Fitting
    Mounting Option:
    Mounting Leg (90 mm)
