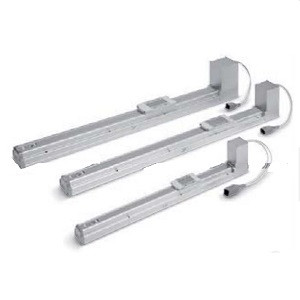

SMC LEFB32ET-500C-R3C918 LEFB-E Series Electric Actuator/Slider Type Belt Drive Battery-less Absolute Encoder

SMC LEFB32ET-500C-R3C918 LEFB-E Series Electric Actuator/Slider Type Belt Drive Battery-less Absolute Encoder

SMC
SKU:
LEFB32ET-500C-R3C918
$0.00
Condition:
New
Current Stock:
Description

LEFB-E Series Electric Actuator/Slider Type Belt Drive Battery-less Absolute Encoder

  • Restart from the last stop position is possible;
  • Easy operation restart after recovery of the power supply; The position information is held by the encoder even when the power supply is turned off; A return to origin operation is not necessary when the power supply is recovered;
  • No battery is installed. Reduced maintenance; No battery is used to store the position information; There is no need to manage spare batteries or replacement maintenance;
  • Max. stroke: 2000 mm;
  • Max. speed: 2000 mm/s;
  • Positioning repeatability: ±0.08 mm;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1
    • Additional Information
    Size:
    32
    Motor Type:
    Battery-less Absolute Encoder Type(Step Motor 24 VDC)
    Equivalent Lead:
    48 mm
    Stroke:
    Stroke 500 mm
    Motor Option:
    Without Lock
    Auto Switch Compatibility:
    With (Includes 1 Mounting Bracket)
    Grease Application (Seal Band Part):
    With
    Positioning Pin Hole:
    Housing B Bottom
    Actuator Cable Type/Length:
    Robotic Cable 3 m
    Communication Protocol Input/Output:
    EtherNet/IP
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    DIN Rail Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Accessory
