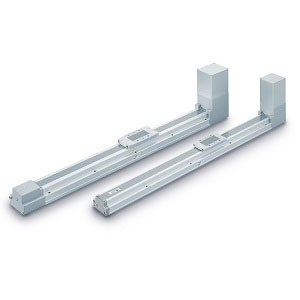

SMC LEFB32UT7S-2500-SAS2H LEFB-AC Series Electric Actuator/Slider Type Belt Drive AC Servo Motor

SMC LEFB32UT7S-2500-SAS2H LEFB-AC Series Electric Actuator/Slider Type Belt Drive AC Servo Motor

SMC
SKU:
LEFB32UT7S-2500-SAS2H
$0.00
Condition:
New
Current Stock:
Description

LEFB-AC Series Electric Actuator/Slider Type Belt Drive AC Servo Motor

Series LEFB Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Max. stroke: 2000 mm;
  • Max. speed: 2000 mm/s;
  • Positioning repeatability: ±0.08 mm;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued);;Series LEFB AC Servo Motor;
  • Max. speed: 2000mm/s;
  • Max. stroke: 3000mm;
  • Max. acceleration/deceleration: 20000mm/S2;
  • Pulse input type/With internal absolute encoder (For the LECSB/C/S);
  • Positioning repeatability: ±0.06 mm;
  • Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued), LECSC-S (Manufacture Discontinued), LECSS-S (Manufacture Discontinued)
    • Additional Information
    Size:
    32
    Motor Mounting Position:
    Bottom Mounting
    Motor Type:
    AC Servo Motor(Absolute Encoder), Output 200W, Actuator Size 32 mm
    Equivalent Lead:
    54 mm
    Stroke:
    Stroke 2500 mm
    Motor Option:
    Without Lock
    Auto Switch Mounting Bracket:
    None
    Positioning Pin Hole:
    Housing B Bottom
    Cable Type:
    Standard Cable
    Cable Length:
    10 m
    Driver Type:
    LECSS2-T, Power Supply Voltage 200V To 240V
    I/O Cable Length:
    Without Cable (Connector Only)
