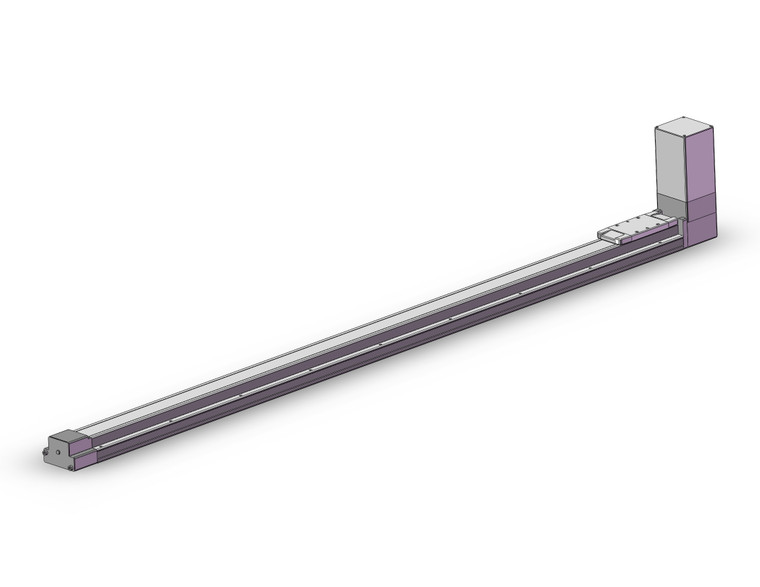

SMC LEFB40T8S-1500B electric actuator belt drive slide table

SMC LEFB40T8S-1500B LEFB-AC Series Electric Actuator/Slider Type Belt Drive AC Servo Motor

SMC
SKU:
LEFB40T8S-1500B
$2,950.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEFB-AC Series Electric Actuator/Slider Type Belt Drive AC Servo Motor

Series LEFB Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Max. stroke: 2000 mm;
  • Max. speed: 2000 mm/s;
  • Positioning repeatability: ±0.08 mm;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued);;Series LEFB AC Servo Motor;
  • Max. speed: 2000mm/s;
  • Max. stroke: 3000mm;
  • Max. acceleration/deceleration: 20000mm/S2;
  • Pulse input type/With internal absolute encoder (For the LECSB/C/S);
  • Positioning repeatability: ±0.06 mm;
  • Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued), LECSC-S (Manufacture Discontinued), LECSS-S (Manufacture Discontinued)
    • Additional Information
    Size:
    40
    Motor Mounting Position:
    Top Mounting
    Motor Type:
    AC Servo Motor(Absolute Encoder), Output 400W, Actuator Size 40 mm
    Equivalent Lead:
    54 mm
    Stroke:
    Stroke 1500 mm
    Motor Option:
    With Lock
    Auto Switch Mounting Bracket:
    None
    Positioning Pin Hole:
    Housing B Bottom
    Cable Type:
    Without Cable
    Cable Length:
    Without Cable
    Driver Type:
    Without Driver
    I/O Cable Length:
    Without Cable
