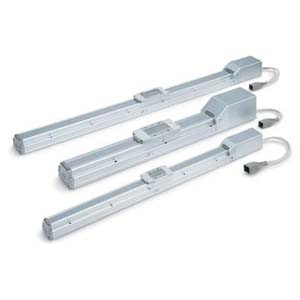

SMC LEFS16A-150-R5AP1D LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

The SMC LEFS16A-150-R5AP1D is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive step motor with a servo motor operating at 24 VDC, ensuring reliable and smooth motion control. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, making it ideal for applications requiring high accuracy. The actuator is compliant with ISO Class 4 (ISO14644-1) clean specifications, ensuring suitability for cleanroom environments, specifically the 11-LEFS model. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. For those requiring an AC servo motor, the LEFS Series offers high output motors available in 100/200/400 W options, providing improved high-speed transfer capabilities and high acceleration/deceleration rates of up to 20000mm/S². The pulse input type and internal absolute encoder (for the LECSB/C/S) enhance precision, with a high precision type offering positioning repeatability of ±0.01 mm. Compatible drivers for the AC servo motor include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, with some models like LECSB-S, LECSC-S, and LECSS-S being discontinued. This actuator is engineered for demanding industrial applications, providing robust performance and adaptability to various control systems.
