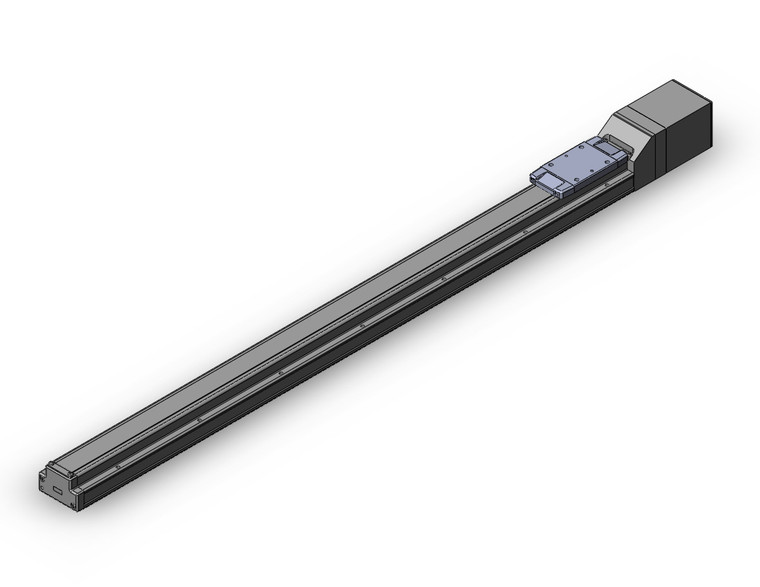

SMC LEFS25A-700-S3AP1D LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

The SMC LEFS25A-700-S3AP1D is a versatile electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive step motor with a servo motor operating at 24 VDC, ensuring reliable performance for various applications. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, making it ideal for tasks requiring high accuracy. This actuator complies with ISO Class 4 clean specifications (ISO14644-1) for the 11-LEFS model, ensuring it meets stringent cleanliness standards. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEFS Series also includes an AC servo motor option, offering high output power of 100/200/400 W. It is engineered for improved high-speed transfer capabilities and features high acceleration and deceleration rates of up to 20000 mm/s². The pulse input type and internal absolute encoder (for the LECSB/C/S) enhance its precision, with a high precision type offering positioning repeatability of ±0.01 mm. Compatible drivers for the LEFS Series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models being discontinued. This actuator is a reliable choice for industries requiring high precision and clean operation.
